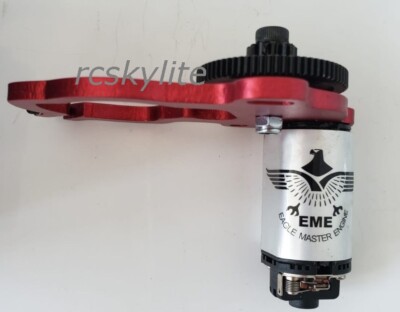

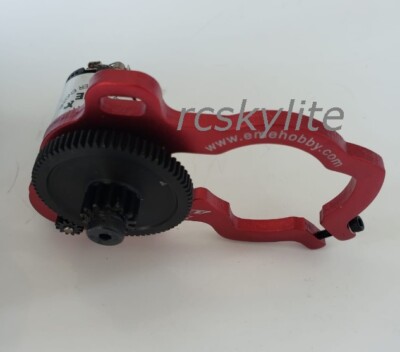

EME Gas Engine Auto Start Kit (50-60cc) for DLE55 / DLE55RA Gas Engine


Category: .

Product Description

The kit incorporates a special one way bearing so power is not transferred back to the electric motor when the engine starts. The auto start unit will require an auto start switch and a battery, 3-15v (12v is recommended) and leads have to be soldered to the motor.

Compatible with the following engines:

EME55, EME60, DL50, DLE55, DLA56, SE55 plus similar engines (Note that the DLE55RA requires drilling one new mounting hole).


  • Strong and robust
  • Beautifully engineered
  • Fitted with a powerful brushed 550 motor
  • Strong one way bearing
  • Supplied with necessary mounting hardware


  • Voltage: 3~15v (12v recommended)
  • Suits Engines: 50~60cc
  • Weight: 540g (19oz)
  • Motor Size: 37.5mm Diameter and 57mm in length
  • Use on DLE55, EME55, DLA56, SE55, EME60
  • Color: Blue / Red (We send randomly)
  • Recommended Brushed ESC: 60A (need to buy separately)

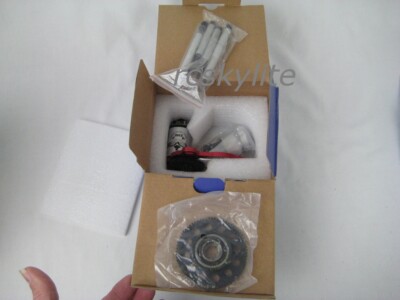

Product Includes:  New In Box Electric Starter x 1 Set (Engine is not included)

Things you NEED to know:

Some disassembly and assembly is required. It is suggested that you are comfortable working on your motors. You will need to remove your prop hub and shaft. You will also need to install a gear with a one way bearing. Basic mechanical mentality/skill is suggested. No instructions included. Grease your gears (lighly) after assembly, use a good sticky grease oil will not be enough. DO NOT operate without a prop.

The Following Alternative Recommended Equipment for Reference:

  • Recommended Brushed ESC: 60A (need to buy separately)
  • Recommended Electric Switch: (Item No.: EME-S-12) (need to buy separately)
  • Coming with protection equipment, when the voltage and current exceed the specified value, the electric starter will automatically open and close.
  • Acting as a brushed ESC and using radio controller to control the electric starter, so users no need to purchase another ESC.

Features: The starter is equipped with single bearing, so power only transfers from the motor to engine. But after the engine started, the power would not pass to motor, so as to protect the motor. Kindly Remark: When mounting and testing the starter, teeth of gear must be clenched properly and solid oil lubrication should be coated on the surface, otherwise the gear will be abraded soon. SUITABLE FOR AIRPLANES.
