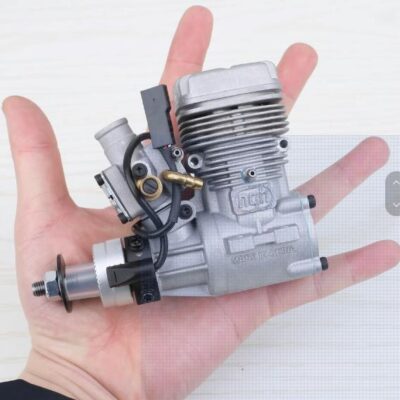

NGH New GT9 Pro 9cc Two-Stroke Gasoline Engine
NGH New GT9 Pro 9cc Two-Stroke Gasoline EngineNGH New GT9 Pro 9cc Two-Stroke Gasoline EngineNGH New GT9 Pro 9cc Two-Stroke Gasoline Engine

NGH New GT9 Pro 9cc Two-Stroke Gasoline Engine

$229

Category: , .

Product Description

NGH has become known for building quality model gas engines that offer lightweight, power, and reliability at a very affordable price. They are manufactured and designed from scratch for model aircraft, they are not modified chainsaw or similar types of engines that have been about in the past, they are purpose made.

The GT9 Pro is the second generation of this popular engine, it has been redesigned to give even more power and has a completely new NGH 20G Pro twin needle carb to give good reliable running and throttle response plus easy starting. The internal diaphragm pump of the carb is driven by crankcase pressure taken from the side of the cylinder to give reliable fuel flow to the carb whatever the attitude of the aircraft and regardless of the tank position. The ignition system is the new NGH automatic advancing angle system that is manufactured for them by Rcexl who have been manufacturing ignition systems for many years.

The GT9 Pro still retains features such as a sand-cast crankcase with NGH logo and ballraced crankshaft, the cylinder head and prop driver are now in classic silver (as opposed to the earlier blue anodized ones) which gives it a new very smart, durable look. Choose an NGH GT9 Pro for your next project and you will not be disappointed.

Features:
• Lightweight and powerful
• NGH advanced ignition system
• Improved twin needle carburetor
• Internal diaphragm fuel pump
• Sand-cast crankcase
• Silver head and prop driver
Specs:
Type: 2 stroke air cooled single cylinder gas engine
Piston Displacement: 9cc
Bore: 23.3mm
Stroke: 21mm
Max Output: 1.2HP/13000rpm
RPM Range: 1800~13500rpm
Carburetor: NGH 20G Pro
Ignition System: NGH automatic advancing angle ignition (manufactured by Rcexl)
Ignition Power: 4.8~8.4V DC (min 1000mAH)
Spark Plug: 1/4 x 32 Rcexl
Fuel: Unleaded gasoline
Fuel/Oil Mixing Ratio: 20:1
Recommended Propellors: 11 x 6, 11 x 7, 12 x 6 2 blade
Weight: 535g with ignition and muffler
Dimensions:
Length (backplate to prop driver): 90.7mm
Overall Length: 116.7mm
Height (bottom of mounting lug to top of the spark plug): 87.1mm
Overall Height: 105.35mm
Width of Mounting Lugs: 52mm
Mounting Hole Centers (width): 44mm
Mounting Hole Centers (length): 18mm
Overall Height: 101.95mm
Overall Width (inc muffler): 93mm
Crankshaft Thread: 1/4-28 UNF
Included:
1 x NGH GT9 Pro gas engine
1 x Muffler
1 x NGH ignition system
1 x Spark plug
1 x Instruction manual
